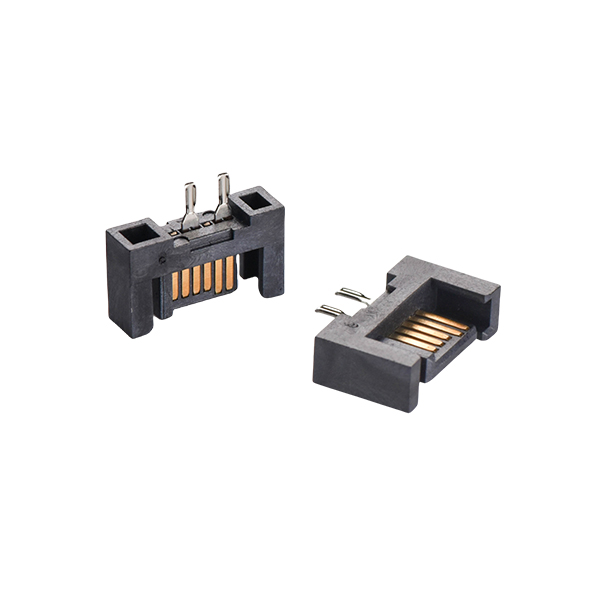

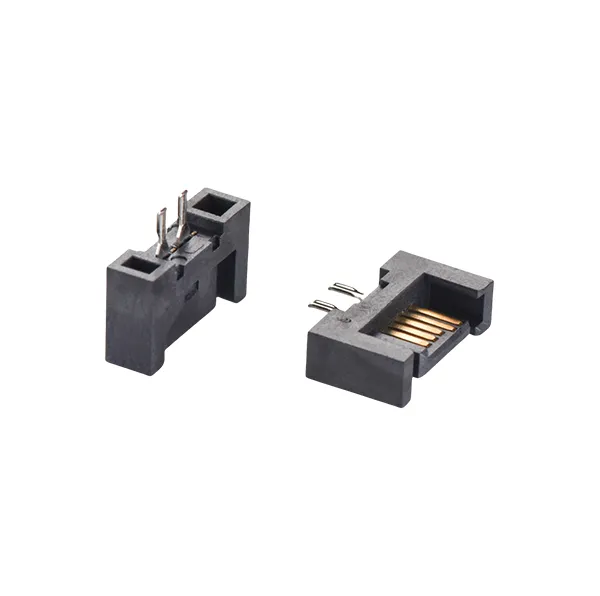

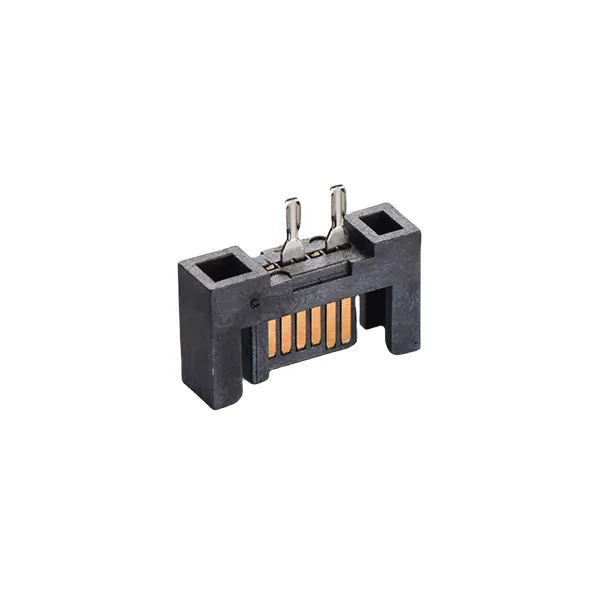

The SATA 6P Soldering Power Connector is a six-position electrical connector designed for compatible power connection applications in storage devices, embedded systems, and electronic equipment. Its compact design allows integration into space-constrAIned assemblies where a reliable, soldered electrical connection is required.
Featuring six contact positions and a soldering termination structure, this connector is suitable for compatible PCB or wire-connected assemblies, depending on the specific model configuration. The soldered connection provides a stable electrical and mechanical joint when installed using the recommended assembly process.
The connector features a durable insulating housing and metal contacts with tin or gold plating options, subject to the selected model specification. These materials help provide electrical insulation, conductivity, and resistance to contact oxidation. The housing material and terminal construction should be verified against the relevant product specification to ensure suitability for the intended operating conditionsFor OEM manufacturers, hardware engineers, and electronic equipment designers, selecting the right connector requires careful consideration of the mating interface, pin assignment, current rating, mounting dimensions, and soldering process. JHF Connect can assist with product identification and technical evaluation based on your application requirements and available reference drawings.
The 6P configuration provides six contact positions for the specified electrical connection.Confirm pin assignment and intended function against the product drawing before integrating the connector into your design.
The soldering structure is designed for assemblies requiring a fixed electrical connection.
When the correct soldering process and PCB footprint are used, it helps maintain a secure joint during normal operation.
Available contact plating depends on the selected model. Tin or gold plating can support different electrical, environmental, and cost requirements.Select the appropriate option according to the application's Contact Resistance, corrosion resistance, and service-life requirements.
The compact six-position structure supports integration into electronic assemblies with limited installation space.Verify the connector dimensions and mounting layout against your PCB or enclosure design before production.
The insulating housing separates the contacts and helps prevent unintended electrical contact.
If UL94 V-0 flame-retardant performance is required, confirm the material rating for the specific connector model before use.
For electronic equipment manufacturers and custom assembly projects, the connector can be evaluated against the required electrical interfacemounting dimensions, wire configuration, and production process.

Depending on the confirmed electrical specification and mating interface, the SATA 6P soldering power connector may be considered for the following applications:
Storage Equipment: Compatible storage enclosures and electronic assemblies requiring a dedicated power connection.
Embedded Systems: Compact embedded computing equipment with defined connector and wiring requirements.
Industrial Electronics: Control equipment and electronic modules where a fixed, soldered connection is appropriate.
Consumer Electronics: Electronic devices requiring a compact six-position power interface.
Custom Cable and PCB Assemblies: OEM projects that require a specific combination of connector geometry, terminal arrangement, and soldering method.
Always verify the connector's electrical and mechanical Compatibility before using it in a specific device.
Q1: Is this SATA 6P connector designed for Data Transmission or power delivery?
This model is described as a six-pin power connector rather than a high-speed SATA data interface. Confirm the exact pin functions against the product specification before use. If your design requires both SATA data and power through a standard combined interface, evaluate a compatible SATA 7+15-pin connector instead.
Q2: Can this connector be soldered directly onto a PCB?
The appropriate soldering method depends on the connector's terminal design. For a through-hole version, the terminals can be soldered into a compatible PCB footprint using the specified hand-soldering or wave-soldering process. Use reflow soldering only if the component is specifically designed and qualified for that process.
Q3: Is it suitable for frequent plugging and unplugging?
The soldered mounting connection is intended to provide a fixed electrical joint rather than serve as a repeatedly removable connection. Any mating cycles at the connector interface depend on the connector's mechanical design and verified durability rating.
Q4: How do I choose between tin-plated and gold-plated contacts?
The choice depends on contact requirements, the operating environment, expected mating frequency, and cost. Gold plating may be appropriate for certain contact-interface requirements, while tin plating may suit other applications. Confirm the available plating options and electrical performance in the product documentation.
Q5: What information is needed to request a quotation?
Please provide the product model, required quantity, application, mating connector information, mounting dimensions, and relevant electrical requirements. A product drawing, PCB footprint, or sample reference can also help confirm whether the connector is suitable for your project.
